6 Stage 840mm Stroke Underbody Hoist

Review

Description

Product Feature

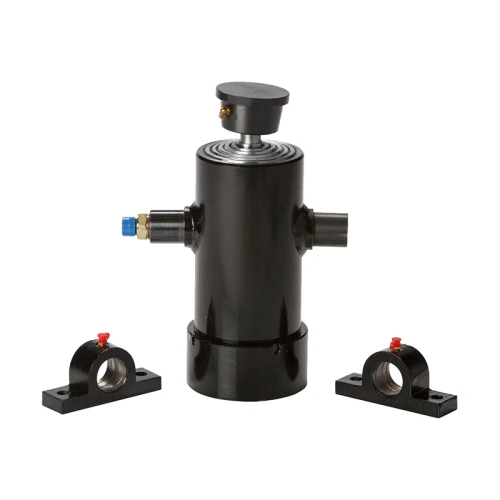

Under Body Tipping Cylinders

Zhongxin Hydraulic designs and manufactures hydraulic underbody tipping cylinders from 1 stage up to 9 stages for dump trailers and for all other types of tipping applications.

Product Feature

1.Compact size, easily installed under tipper body ,idea for rear,side or 3 way tipping applications

2.Reason able design , reduce friction and smooth sliding with extra guide and special sealing structure

3.For ease of fitment, no need complicated tooling and molds

4.with standard Hydraulic power units for your options

5.All stages are chrome plated externally to increase working life

6.Guarantee good performance with top class seal kits

7.working pressure can be up to 2750 psi

8.All stages diameter:

191/169/149/129/110/90/75/60/45/30

185/165/145/125/105/90/75/60/45/30

180/160/140/120/105/90/75/60/45/30

190/170/150/130/110/90/70/50

Application

Tipping Solutions are available for underbody applications in a variety of market segments, including:

.Construction

.Agriculture

.Road Transport

.Municipal

Technical Data

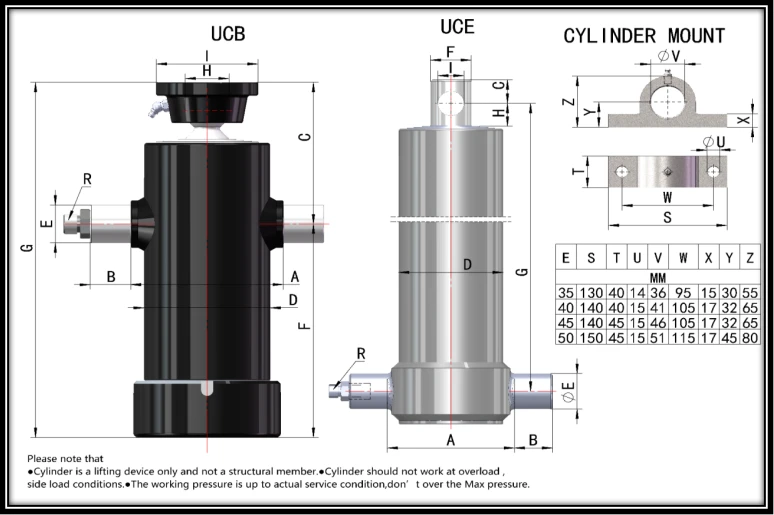

Model	Stroke	Stages	CAP (T)	DIMENSIONS of cylinders in mm.
				A	B	C	D	E	F	G	H	I	R
UCB 75-3-630	630	3	3	115	40	140	95	35	234	374	43	100	1/2”
UCB 90-4-840	840	4	4	135	40	140	112	35	235	375	43	100	1/2”
UCB 105-4-1310	1310	4	9	150	40	157	124	40	351	508	55	115	1/2"
UCB 105-4-1510	1510	4	9	150	40	157	124	40	401	558	55	115	1/2"
UCB 105-4-1710	1710	4	9	150	40	157	124	40	451	608	55	115	1/2"
UCB 105-4-1990	1990	4	9	150	40	157	124	40	521	678	55	115	1/2"
UCB 105-5-1040	1040	5	8	150	40	150	124	40	228	378	43	100	1/2"
UCB 105-5-1250	1250	5	8	150	40	150	124	40	267	417	43	100	1/2"
UCB 105-5-1500	1500	5	8	150	40	150	124	40	318	468	43	100	1/2"
UCB 125-5-1020	1020	5	11	175	45	165	152	45	222	387	55	115	1/2"
UCB 125-5-1230	1245	5	11	175	45	165	152	45	264	429	55	115	1/2"
UCB 125-5-1480	1480	5	11	175	45	165	152	45	315	480	55	115	1/2"
UCB 125-5-1630	1630	5	11	175	45	165	152	45	344	509	55	115	1/2"
UCB 125-5-1880	1880	5	11	175	45	165	152	45	395	560	55	115	1/2"
UCB 125-5-2130	2130	5	11	175	45	165	152	45	445	610	55	115	1/2"
UCB 125-5-2480	2480	5	11	175	45	165	152	45	515	680	55	115	1/2"
UCB 125-6-1480	1480	6	10	175	45	155	152	45	265	420	43	100	1/2"
UCB 125-6-1780	1780	6	10	175	45	155	152	45	315	470	43	100	1/2"
UCB 125-6-1960	1960	6	10	175	45	155	152	45	345	500	43	100	1/2"
UCB 125-6-2980	2980	6	10	175	45	155	152	45	515	670	43	100	1/2"
UCB 145-5-1585	1580	5	15	200	50	200	170	45	316	516	55	115	3/4”
UCB 145-5-2085	2080	5	15	200	50	200	170	45	416	616	55	115	3/4”
UCB 145-6-1920	1920	6	13	200	50	210	170	45	307	517	55	115	3/4”
UCB 145-6-2940	2940	6	13	200	50	210	170	45	477	687	55	115	3/4”
UCB 165-5-1500	1500	5	20	230	50	240	190	45	279	519	55	115	3/4”
UCB 165-5-1750	1750	5	20	230	50	240	190	45	329	569	55	115	3/4”
UCB 165-5-2000	2000	5	20	230	50	240	190	45	379	619	55	115	3/4”
UCB 165-5-2350	2350	5	20	230	50	240	190	45	449	689	55	115	3/4”
UCB 165-6-2130	2130	6	18	230	50	240	190	45	330	570	55	115	3/4”
UCB 165-6-2850	2850	6	18	230	50	240	190	45	450	690	55	115	3/4”
UCE 105-4-1310	1310	4	9.8	150	45	30	124	45	57	450	32	31	1/2"
UCE 105-4-1510	1510	4	9.8	150	45	30	124	45	57	500	32	31	1/2"
UCE 105-4-1710	1710	4	9.8	150	45	30	124	45	57	550	32	31	1/2"
UCE 105-4-1990	1990	4	9.8	150	45	30	124	45	57	620	32	31	1/2”
