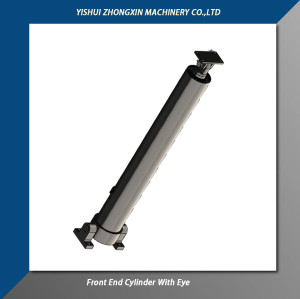

Front End Cylinder With Eye
Front End Cylinder With Eye
Front End Cylinder With Eye

Front End Cylinder With Eye

Model
FE169-5-5375; FE191-5-6125

Review

Description

Front End Cylinders With Eye
Zhongxin Hydraulic offers different type of front end cylinders for agricultural dump trailers and for other light and medium duty commercial vehicle applications.
Product Feature
1. To guarantee stable and reliable quality by advanced machining technology and Reasonable design scheme.
2. the material with better mechanical property to guarantee stronger lifting capacity.
3. Ensure the best product performance by world famous seal kits.
4. Highly improved anti-corrosion and wear resisting property with high-end chrome plating production line.
5.Stroke 900mm-12000mm, up to 8 stages.
6.1. working pressure up to 3500psi.
7.  lifting capacity can be 120ton by reasonable lifting way.
8. lifting capacity can be about 300 ton for special mine Hydraulic cylinders.
9.All stage Diameter:
214/191/169/149/129/110/91/72/(53)
(226)/202/179/157/137/118/99/80/63
221/196/172/150/129/110/91/72/（53）
206/182/160/140/120/100/80/63/（46）
MODEL PRESSURE
(bar)		 Max. thrust
(KN)		 B1 C I J K M R L T U V Y Z
FE 110-3-3205 190 180.5 163 130 60 91 1449 100 52 160 G1 60 65 50 42
FE 110-3-3460 190 180.5 163 130 60 91 1609 100 52 160 G1 60 65 50 42
FE 129-3-3460 190 248.2 201 150 60 91 1449 100 52 160 G1 60 65 50 42
FE 129-3-3880 190 248.2 201 150 60 91 1609 100 52 160 G1 60 65 50 42
FE 149-3-2900 190 331.2 201 170 60 96 1320 135 52 160 G1 60 65 50 42
FE 149-3-3200 190 331.2 201 170 60 96 1420 135 52 160 G1 60 65 50 42
FE 149-3-3500 190 331.2 201 170 60 96 1520 135 52 160 G1 60 65 50 42
FE 149-3-3880 190 331.2 201 170 60 96 1644 135 52 160 G1 60 65 50 42
FE 149-3-4280 190 331.2 201 170 60 96 1777 135 52 160 G1 60 65 50 42
FE 149-4-4280 190 331.2 201 170 60 96 1450 160 52 160 G1 60 65 50 42
FE 149-4-4620 190 331.2 201 170 60 96 1484 135 52 160 G1 60 65 50 42
FE 149-4-4940 190 331.2 201 170 60 96 1529 100 52 160 G1 60 65 50 42
FE 169-4-4280 190 426 245 192 65 106 1394 135 52 160 G1 60 65 50 42
FE 169-4-4620 190 426 245 192 65 106 1479 135 52 160 G1 60 65 50 42
FE 169-4-4940 190 426 245 192 65 106 1529 100 52 160 G1 60 65 50 42
FE 169-4-5180 190 426 245 192 65 106 1604 100 52 160 G1 60 65 50 42
FE 169-5-5355 190 426 245 192 65 106 1394 100 52 160 G1 60 65 50 42
FE 169-5-5780 190 426 245 192 65 106 1459 100 52 160 G1 60 65 50 42
FE 169-5-6180 190 426 245 192 65 106 1497 100 52 160 G1 60 65 50 42
FE 169-5-6830 190 426 245 192 65 106 1674 100 52 160 G1 60 65 50 42
FE 169-5-7130 190 426 245 192 65 106 1734 100 52 160 G1 60 65 50 42
FE 169-5-7630 170 381.2 245 192 65 106 1834 100 52 160 G1 60 65 50 42
FE 169-5-8130 170 381.2 245 192 65 106 1934 100 52 160 G1 60 65 50 42
FE 191-5-6180 190 544.1 245 215 70 116 1527 100 52 160 G1 60 65 50 42
FE 191-5-7130 190 544.1 245 215 70 116 1717 100 52 160 G1 60 65 50 42
FE 191-5-7630 190 544.1 245 215 70 116 1817 100 52 160 G1 60 65 50 42
FE 191-5-9030 150 429.6 245 215 70 116 2177 100 52 160 G1 60 65 50 42
FE 214-5-7130 190 683 270 240 85 135 1722 100 62 160 G1 65 65 60 52
FE 214-5-7630 170 611.1 270 240 85 135 1857 100 62 160 G1 65 65 60 52
